345MVA 500KV Auto Transformer SABS (South African Beaureu of Standards) Transformers from China manufacturer

345MVA 500KV Auto Transformer SABS (South African Beaureu of Standards) Transformers

Payment Terms:	T/T,L/C
Place of Origin:	Zhejiang, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: ODFS13-334000/500

Production Capacity: 6000PCS

345MVA 500KV Auto Transformer: Auto Transformer

SABS (South African Beaureu of Standards): Transformers

Means of Transport: Ocean

Brand Name: sinopower

Power transformer: ODFS13-334000/500 single ph...

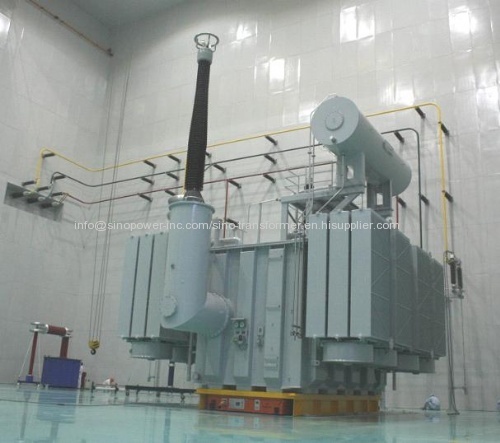

345MVA 500KV Auto Transformer
Widely used in domestic large thermal power, hydropower, nuclear power, wind power, ultra high voltage,

Details

With low load loss and low partial, high reliability insulation, stronger ability to resist short circuit, low noise and beautiful appearance, and a series of advantages.

Testing Equipment for 500kV Testing Station

Item	Meter type	Serial No.	Measurement Scope	Accuracy	Meter State	Calibration Organization	Equipment Validity
1	Insulation resistance testing meter(MIT520)	ER-04-34	1MQ-5TQ	5	OK	Changzhou Measurement Co.	Mar. 9 ,2013
2	Insulation resistance testing meter(MIT520/2)	ER-04-09	1MQ-5TQ	v	OK	Changzhou Measurement Co.	Mar. 9 ,2013
3	Automatic anti-interference medium (AI-6000)	A91131A	3-6000PF tg5: *1%+0.0004	1	OK	Shanghai Electric Instrument Checking & Testing Station	Mar. 15 ,2013
4	Transformer turn ratio testing meter (JYT)	04090552	1〜5000	0.2	OK	Changzhou Measurement Co.	Mar. 9 ,2013
5	Infrared measure temperature meter (FLUKE-62)	TT-10-119	-30oC〜500 oC	1	OK	Liyang Measurement Co.	Apr 18,2012
6	DC resistance testing meter (JYR-40D)	01091983	100uQ〜4Q	0.2	OK	Changzhou Measurement Co.	Mar. 9 ,2013
7	DC resistance testing meter (JYR-40D)	01091887	100uQ〜4Q	0.2	OK	Changzhou Measurement Co.	Mar. 9 ,2013
8	Power-frequency capacitance voltage divider (TRF-550)	090857	550 kV	1	OK	National HV Measurement Station	Aug. 5 ,2013
9	Power-frequency excitation transformer	090853	/	/	OK	/	/
	(ZB-75/2*6.5)
10	Power-frequency capacitance voltage divider (compound power-frequency support transformer) YDTW-150	090862	150 kV	1class	OK	National HV Measurement Station	Aug. 5 ,2013
11	Power-frequency reactor (YDGK-2750/2*275)	090854	/	/	OK	/	/
12	Feebleness damp capacitance voltage divider(compound lightning impulse withstand 4000KV) FYI-1000/400	S0927-3	0〜3600kV	1	OK	National HV Measurement Station	Aug. 5 ,2013
13	Feebleness damp capacitance voltage divider(compound lightning impulse withstand 1200KV) FYI-1000/500	S0937-5	0〜1200kV	1	OK	National HV Measurement Station	Aug. 5 ,2013
14	Precision VT (HJL-110)	0981 0982 0983	6KV〜110 kV/100V	0.01	OK	Northeast National Measurement Co.	May. 27,2013
15	Precision VT (HJL-110)	984 0986 0985	6KV〜110 kV/100V	0.01	OK	Northeast National Measurement Co.	May. 27,20131
16	Precision CT (HJL-110)	0986 0985 0984	5〜3000/5A	0.01	OK	Northeast National Measurement Co.	May. 27,2013
17	Precision CT (HJL-110)	0983 0982 0981	5〜3000/5A	0.01	OK	Northeast National Measurement Co.	May. 27,2013
18	Power analyzing meter (WT3000)	91HA17572	1000V, 20A	0.02	OK	Shanghai Measurement Co.	Jan. 18,2013
19	Power analyzing meter (WT3000)	91HA17573	1000V, 20A	0.02	OK	Shanghai Measurement Co.	Mar. 15 ,2013
20	Multicenter digital partial discharge meter (TWPD-2B)	0905XY223	0.1~106pC	3	OK	Shanghai Electric Instrument Checking & Testing Station	Nov 10, 2012
21	Multicenter digital partial discharge meter (TWPD-4)	0408XY38	0.1〜106pC	3	OK	Shanghai Electric Instrument Checking &Testing Station	Mar. 15 ,2013
22	Standard pulse generator (TWPD-02)	0908X04064	10〜500 pC	1	OK	Shanghai Electric Instrument Checking & Testing Station	Nov 10, 2012
23	Sound measure meter (AWA5661)	047090	24〜150dB	1	OK	Shanghai Measurement Co.	Apr 18,2012
24	DOUBLE spectrum analyzer(W5300)	BS-02-03	10Hz〜1M Hz	0.1	OK	Shanghai Electric Instrument Checking & Testing Station	Nov 10, 2012
25	Temperature Measuring Instrument	S5HB07150	-30°C 〜500°C	1	OK	Jiangsu Oriental Aviation Calibration Testing CO.,LTD	Oct .14,2012

2: Testing Equipment

Item	Equipment Name	Type	Serial No.	Manufactory	Making data	Installation data	Meter state
1	Middle transformer	YSF9-25000/110	09-110-408	Huapeng	May. 2009	Sep. 2009	OK
2	Middle transformer	YSF9-25000/110	09-110-409	Huapeng	May. 2009	Sep. 2009	OK
3	Power-frequency generator	TFS15000-6/2150	19FA0800157	Shanghai Electric factory	Nov. 2008	Sep. 2009	OK
4	Time-frequency generator	TF4000-24	18TA0800160	Shanghai Electric facxtory	Dec. 2008	Sep. 2009	OK
5	Voltage regulator	TYSA6300/10.5	098-103	Shanghai Sendi	Jul. 2009	Sep. 2009	OK
6	XYZ	XYZ-125GD	090401A	Qidong Jianghai Hydraulix Pressure Lubricate Equipment	Aug. 2009	Sep. 2009	OK

MAIN MANUFACTURING EQUIPMENT
EQUIPMENT NAME	MODEL & TYPE	Quantity	For	Supplier's Origin
LENGTH CUT EQUIPMENT	CORE WIDTH<1000MM	1	Cut Silicon Steel Sheet	GEORG, Germany
	CORE WIDTH<800MM	2
	CORE WIDTH<650MM	1		SONENEN, Belgium
	CORE WIDTH<400MM	3		Xi'an Qiyuan, China
SLITTING CUT EQUIPMENT		2
CORE ASSENBLY TILTING PLATFORM		6	Lamination Stacking Core	HUAPENG, China
HORIZONTAL WINDING MACHINE	10T	4	Coil Windings	LAE, Italy
	15T	2		HUAPENG, China
	BELOW 15T	28
VERTICAL WINDING MACHINE	10T/15T/20T	2/4/2
HEAT PRESS MACHINE	100T/500T/1200T/3000T	Each 1	Insulating Part
HYDRAULIC PRESSURE MACHINE	100T / 200T	2	Pressing Winding
BENDING PRESS MACHINE	800T / 630T	1/1	Manufacture Tank	TIANSHUI, China
SANDBLAST ROOM		300 m2	Tank Painting Clear	HUAPENG, China
VACUUM DRYNESS EQUIPMENT		3	Winding Dryness	Jinda, China
DRYNESS EQUIPMENT	KEROSENE VAPOUR	5	Action Part Dryness	YOUBANG, China
TRAVELLING CRANE	100T / 200T	2/2	Move Transformers	Dalisheng, China
	50T / 75T	1/1
	BELOW 50T	Total 28		HUAPENG, China
VACUUM FILTER MACHINE	VH080R	2	Filling Oil	ABB, Switzerland
MECHANICAL TURRET PUNCH PRESS	CNC	1	Manufacture Control Cabinet & Cable Channel	Raskin, Switzerland
BENDING PRESS MACHINE	NC	1		Yawei, China
ROCKER SWAGING MACHINE	HYDRAULIC NC	1
FOIL TYPE WINDING MACHINE		1	Coil Dry-type transformer Windings	STOLLBERG, Germany
	RJ2-1400	3		HONGYE, China
VACUUM CAST RETORT		3	Cast Windings	HEDRICH, Germany
SOLIDIFY KILN		10	Dry Windings	HUAPENG, China
